Gear Racks

Name: Gear Racks
Brand: S.J. ENTERPRISES
Price: 347.0 INR
Availability: InStock

Price 347.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Gear Racks Specification

Gear Type
Rack Gears

Usage
FOR LINEAR MOTION

Size
ALL

Processing Type
Other

Gear Tooth Profile
Other

Product Type
GEAR RACK

Gearing Arrangement
Helical

Weight
2 Kilograms (kg)

Color
BLACK

Gear Racks Trade Information

Minimum Order Quantity
10 Pieces

FOB Port
MAHARASHTRA

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
BOXES

Main Export Market(s)
Asia

Main Domestic Market
All India

About Gear Racks

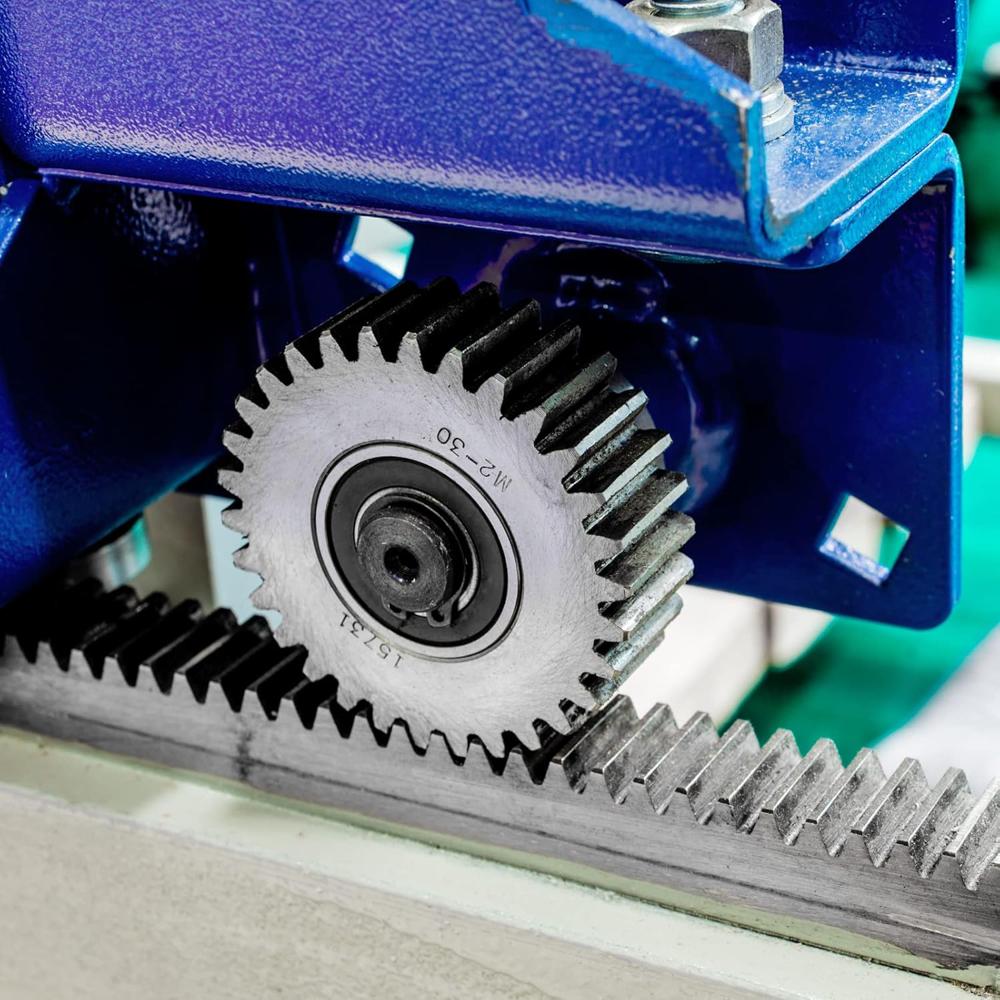

Gear racks are linear components with teeth cut into one side of a square, rectangular, or round bar, designed to mesh with a circular pinion gear. This system, known as a rack and pinion, is the primary mechanical method for converting rotary motion into linear motion.

Key Types of Gear Racks

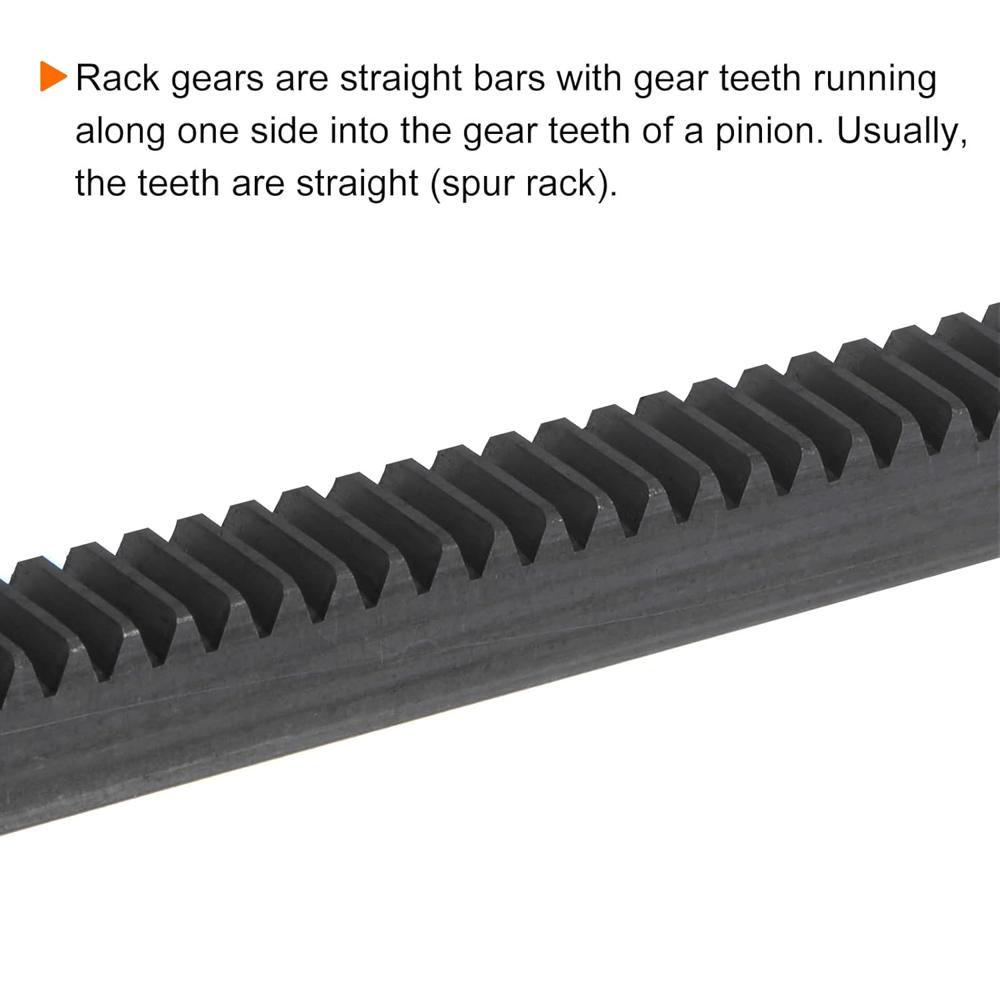

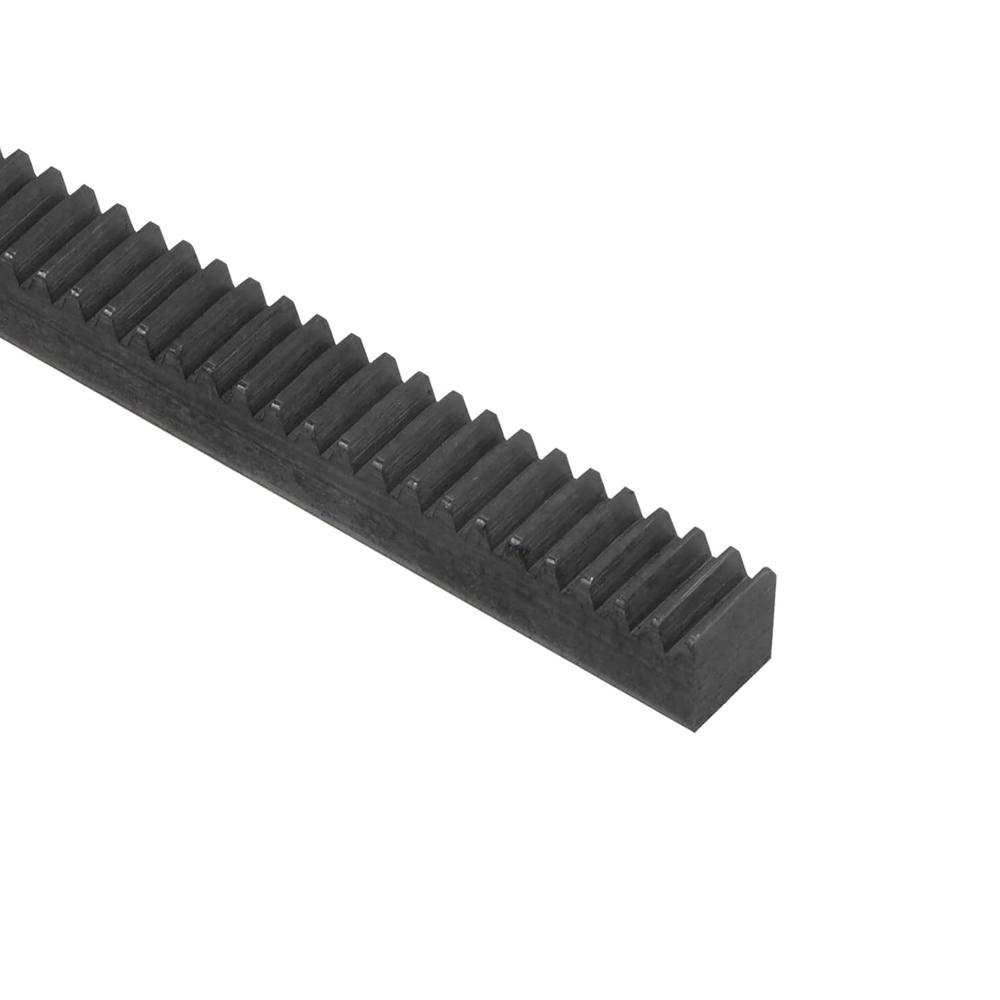

Straight (Spur) Gear Racks: These feature teeth cut parallel to the rack's axis. They are the most common type due to their simplicity and cost-effectiveness for standard linear motion.
Helical Gear Racks: The teeth are cut at an angle (helix). This design provides smoother, quieter operation and higher load capacity because the teeth engage gradually.
Round Gear Racks: These use a cylindrical rod as the base, allowing for a simpler bearing structure. They are often used in applications where the rack itself must move through a sleeve.
Machined-End Racks: Specifically designed to be joined end-to-end to create almost limitless travel lengths.

Common Applications

Automotive Steering: Translates the rotation of the steering wheel into the side-to-side motion of the vehicle's wheels.
CNC Machinery: Drives cutting tools or laser heads along precise, repeatable paths over long distances.
Lifting Systems: Used in elevators, stairlifts, and construction hoists to provide stable vertical movement.
Industrial Automation: Found in robotic arms (7th axis), packaging machines, and automated assembly lines.

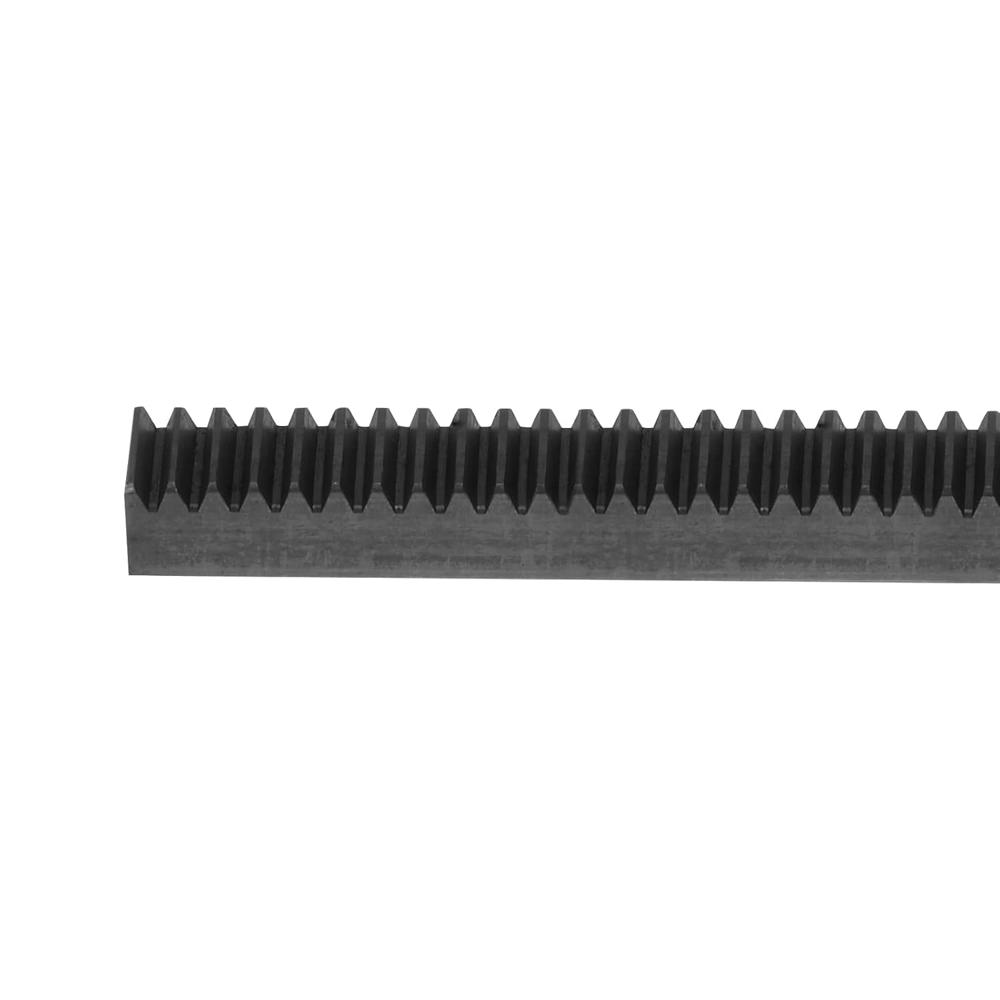

Size - Model: 1 Mod; Length: 500mm/19.69"; Width: 10mm/0.39"; Height: 10mm/0.39"; Tooth Pitch: 3.14mm/0.12"; Tooth Depth: 2.25mm/0.09"
Material - The spur rack is made of 45# steel, which has high hardness, strength, and strong deformation resistance, it is more durable, longer lasting, and easier to process, install, and debug.
Feature - Racks are used to convert rotary motion into linear motion. The straight teeth of the rack are cut into one face of the square or circular section of the rod and fit with the pinion, which has the characteristics of mechanical simplicity, high load-carrying capacity, and unlimited length.
Application - Spur racks are paired with spur gears and are suitable for lifting mechanisms (vertical movement), horizontal movement, positioning mechanisms, stopping and allowing simultaneous rotation of multiple axes in industrial machinery.
Note - Only gears of the same type can be used with racks. For example, a 1M rack can be used with all 1M gears.
